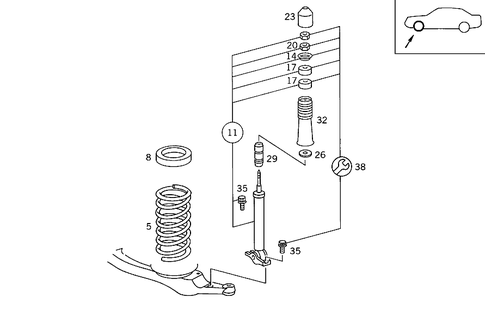

Springs and Suspension, Front for 1991 Mercedes-Benz 560SEC
No.
Part # / Description / Price
Price
5
Front Axle Spring
Mercedes-Benz
Mercedes-Benz Notes: Up to ident. no.: A428208
TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS SPECIAL EQUIPMENT POINTS
126.044 25 AIR CONDITIONER 8
126.044 S 27 ADDITIONAL HEATER 5
126.044 CH 28 SLIDING ROOF 2
126.045 40 SELF-LEVELLING DEVICE 2
126.046 24 AIR BAG 1
126.046 S 26 ELCTRIC WINDOW REGULATORS 1
126.046 CH 27 FIRE EXTINGUISHER 1
UNDERSHIELD (STEEL PLATE) 1
TEMPOMAT (CRUISE CONTROL) 1
ACCELERATION SKID CONTROL (ASR)
ELECTICALLY ADJUSTED FRONT SAET 1
HEADLAMP WIPER/WASHER 1
.
==============================================================================================================================
TABLE FRONT SPRING - RUBBER BOOT
==============================================================================================================================
SUM OF POINTS FRONT SPRING BOOT BOOT:
NORMAL SPRINGS FIRM-RIDE SPRINGS WITH BLUE FRONT SPRING W/ RED FRONT SPRING
-23 126 321 16 04 126 321 07 84 126 321 08 84
24-29 126 321 16 04 126 321 08 84 126 321 09 84
30-35 -25 126 321 16 04 126 321 09 84 126 321 10 84
.
36-41 26-31 126 321 17 04 126 321 07 84 126 321 08 84
42-47 32-37 126 321 17 04 126 321 08 84 126 321 09 84
48-53 38-43 126 321 17 04 126 321 09 84 126 321 10 84
.
54- 44-49 126 321 18 04 126 321 07 84 126 321 08 84
50- 126 321 18 04 126 321 08 84 126 321 09 84
.
==============================================================================================================================
TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS SPECIAL EQUIPMENT POINTS 126.045 MBSA 44 ADDITIONAL HEATER 5 AIR BAG 1 FIRE EXTINGUISHER 1 UNDERSHIELD (STEEL PLATE) 1 ============================================================================================================================== TABLE FRONT SPRING - RUBBER BOOT ============================================================================================================================== TOTAL OF POINTS FRONT SPRING BOOT BOOT: NORMAL SUSPENSION WITH BLUE FRONT SPRING W/ RED FRONT SPRING -49 126 321 17 04 126 321 08 84 126 321 09 84 50- 126 321 17 04 126 321 09 84 126 321 10 84 ==============================================================================================================================
TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS SPECIAL EQUIPMENT POINTS 126.045 MBSA 44 ADDITIONAL HEATER 5 AIR BAG 1 FIRE EXTINGUISHER 1 UNDERSHIELD (STEEL PLATE) 1 ============================================================================================================================== TABLE FRONT SPRING - RUBBER BOOT ============================================================================================================================== TOTAL OF POINTS FRONT SPRING BOOT BOOT: NORMAL SUSPENSION WITH BLUE FRONT SPRING W/ RED FRONT SPRING -49 126 321 17 04 126 321 08 84 126 321 09 84 50- 126 321 17 04 126 321 09 84 126 321 10 84 ==============================================================================================================================
Description: As required. Used with 3 special versions. Used with 2 special versions.
$132.00
$132.00
5
Front Axle Spring Mercedes-Benz
Mercedes-Benz Notes: Up to ident. no.: A428208
TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS SPECIAL EQUIPMENT POINTS
126.044 25 AIR CONDITIONER 8
126.044 S 27 ADDITIONAL HEATER 5
126.044 CH 28 SLIDING ROOF 2
126.045 40 SELF-LEVELLING DEVICE 2
126.046 24 AIR BAG 1
126.046 S 26 ELCTRIC WINDOW REGULATORS 1
126.046 CH 27 FIRE EXTINGUISHER 1
UNDERSHIELD (STEEL PLATE) 1
TEMPOMAT (CRUISE CONTROL) 1
ACCELERATION SKID CONTROL (ASR)
ELECTICALLY ADJUSTED FRONT SAET 1
HEADLAMP WIPER/WASHER 1
.
==============================================================================================================================
TABLE FRONT SPRING - RUBBER BOOT
==============================================================================================================================
SUM OF POINTS FRONT SPRING BOOT BOOT:
NORMAL SPRINGS FIRM-RIDE SPRINGS WITH BLUE FRONT SPRING W/ RED FRONT SPRING
-23 126 321 16 04 126 321 07 84 126 321 08 84
24-29 126 321 16 04 126 321 08 84 126 321 09 84
30-35 -25 126 321 16 04 126 321 09 84 126 321 10 84
.
36-41 26-31 126 321 17 04 126 321 07 84 126 321 08 84
42-47 32-37 126 321 17 04 126 321 08 84 126 321 09 84
48-53 38-43 126 321 17 04 126 321 09 84 126 321 10 84
.
54- 44-49 126 321 18 04 126 321 07 84 126 321 08 84
50- 126 321 18 04 126 321 08 84 126 321 09 84
.
==============================================================================================================================
Description: As required. Used with h.d.springs,air conditioner & 3 special versions. Used with h.d.springs,air conditioner & 2 special versions.
5
Front Axle Spring Mercedes-Benz
Mercedes-Benz Notes: Up to ident. no.: A428208
TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS SPECIAL EQUIPMENT POINTS
126.044 25 AIR CONDITIONER 8
126.044 S 27 ADDITIONAL HEATER 5
126.044 CH 28 SLIDING ROOF 2
126.045 40 SELF-LEVELLING DEVICE 2
126.046 24 AIR BAG 1
126.046 S 26 ELCTRIC WINDOW REGULATORS 1
126.046 CH 27 FIRE EXTINGUISHER 1
UNDERSHIELD (STEEL PLATE) 1
TEMPOMAT (CRUISE CONTROL) 1
ACCELERATION SKID CONTROL (ASR)
ELECTICALLY ADJUSTED FRONT SAET 1
HEADLAMP WIPER/WASHER 1
.
==============================================================================================================================
TABLE FRONT SPRING - RUBBER BOOT
==============================================================================================================================
SUM OF POINTS FRONT SPRING BOOT BOOT:
NORMAL SPRINGS FIRM-RIDE SPRINGS WITH BLUE FRONT SPRING W/ RED FRONT SPRING
-23 126 321 16 04 126 321 07 84 126 321 08 84
24-29 126 321 16 04 126 321 08 84 126 321 09 84
30-35 -25 126 321 16 04 126 321 09 84 126 321 10 84
.
36-41 26-31 126 321 17 04 126 321 07 84 126 321 08 84
42-47 32-37 126 321 17 04 126 321 08 84 126 321 09 84
48-53 38-43 126 321 17 04 126 321 09 84 126 321 10 84
.
54- 44-49 126 321 18 04 126 321 07 84 126 321 08 84
50- 126 321 18 04 126 321 08 84 126 321 09 84
.
==============================================================================================================================
Description: As required. Used with 0 to 3 special versions. Used with 0 to 2 special versions. Used with 0 to 1 special version.
8
$61.00
11
Shock Absorber Mercedes-Benz
Mercedes-Benz Notes: ONLY REPLACEABLE BY PAIRS
Description: Range of delivery.
$204.00
$204.00
17
Rubber Ring Mercedes-Benz
Mercedes-Benz Description: Front shock absorbers to frame. For shock absorber to front axle support up to chassis 9501819 only for export, special request, for bad roads from chas. For shock absorber at front axle support. Shock absorbers to subframe.
$4.20
$4.20
20
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M10X1
Diameter: 10mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1mm
Width across flats: 16mm. Front shock absorbers to frame. Bumper to body. Shock absorber to frame m 10x1. Hydropneumatic spring leg to frame m 10x1.
Diameter: 10mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1mm
Width across flats: 16mm. Front shock absorbers to frame. Bumper to body. Shock absorber to frame m 10x1. Hydropneumatic spring leg to frame m 10x1.
$3.70
$3.70
