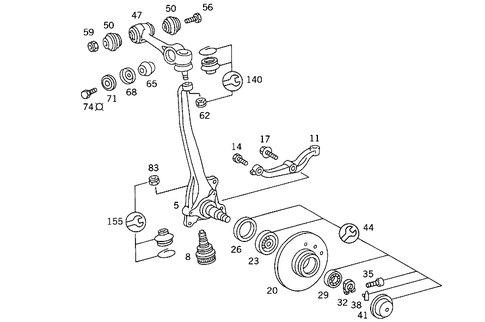

Steering Knuckle and Control Arm for 1991 Mercedes-Benz 560SEL
No.
Part # / Description / Price
Price
5
Steering Knuckle
Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH ANTI-LOCK BRAKING SYSTEM
Description: Left.
$210.00
$210.00
20
Front Wheel Hub Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH ANTI-LOCK BRAKING SYSTEM
Description: ( a b s ).
26
$18.50
32
$7.25
35
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: M6X25
Diameter: 6mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Lock wedge to door. Striker to door. Left clamping piece. Wheel hub to kingpin. Front wheel hub to steering knuckle, left and right.
Diameter: 6mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Lock wedge to door. Striker to door. Left clamping piece. Wheel hub to kingpin. Front wheel hub to steering knuckle, left and right.
$3.90
$3.90
38
Contact Spring Mercedes-Benz
Mercedes-Benz Description: Front wheel hub to steering knuckle to 140 330 00 51.
$5.50
$5.50
44
Tapered Roller Bearing Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH ANTI-LOCK BRAKING SYSTEM
Description: Front wheel bearing.
$97.00
$97.00
47
Transverse Control Arm Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Top left. Left,with rubber mounting.
56
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: UPPER CONTROL ARM TO FRAMEDiameter: 12mmStrength / hardness class: 10.9Thread code letter: MThread pitch: 1,5mm. AXLE SHAFT TO WHEEL BEARING M 12 X 1;5 X 100Diameter: 12mmStrength / hardness class: 10.9Thread code letter: MThread pitch: 1,5mm. Tie rod to l ...
$8.50
$8.50
59
Hexagon Nut Mercedes-Benz
Mercedes-Benz Notes: IMPORTANT: OBSERVE CHANGED TIGHTENING TORQUES
Description: Spring control arm to rear subframe. Upper transverse control arm to steering knuckle. Lower control arm to steering knuckle. Torsion bar to frame. Lower joint to control arm. Joint to steering knuckle. Shock absorber to lower control arm.
$7.50
$7.50
62
Nut Mercedes-Benz
Mercedes-Benz Description: M10X1
Diameter: 10mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1mm
Width across flats: 17mm. Upper transverse control arm to steering knuckle. Bumper to body. To 107 330 01 03. Drag link to pitman arm and to steering intermediate arm to a1264600805,a1264600905. To 107 460 06 05. Tie rod to steering arm. Shock absorber to frame. To 123 460 15 05. To 126 460 09 05.
Diameter: 10mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1mm
Width across flats: 17mm. Upper transverse control arm to steering knuckle. Bumper to body. To 107 330 01 03. Drag link to pitman arm and to steering intermediate arm to a1264600805,a1264600905. To 107 460 06 05. Tie rod to steering arm. Shock absorber to frame. To 123 460 15 05. To 126 460 09 05.
$4.50
$4.50
65
Plain Bearing Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Upper control arm to torsion bar.
$8.50
$8.50
74
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Upper control arm to torsion bar. Steering shock absorber to drag link m10 x 35.
$6.50
$6.50
77
$740.00
77
$770.00
80
$8.75
83
Nut Mercedes-Benz
Mercedes-Benz Description: Lower control arm to steering knuckle. Lower joint to control arm. Drag link and tie rod to steering arm.
$7.25
$7.25
101
Spring Washer Mercedes-Benz
Mercedes-Benz Description: Wiper arm with blade to wiper spindle. Drive rod to crank arm. Wiper arm to wiper shaft. Wiper arm on spindle.
$1.50
$1.50
128
Washer Mercedes-Benz
Mercedes-Benz Description: Refrigerant compressor to support. Bearing cup to bearing bracket.
$2.70
$2.70
131
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M12x1.5. Tie rod to rear subframe. Spring control arm to rear subframe m 12. Bearing cup to bearing bracket. Steering intermediate arm bearing. Drag link to steering arm. Strut to rear subframe.
$2.50
$2.50
131
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: Bearing cup to bearing bracket. Upper transverse control arm to steering knuckle m10.
$9.75
$9.75
140
Repair Kit Mercedes-Benz
Mercedes-Benz Description: Upper control arm joint boot. Upper transverse control arm to steering knuckle.
$102.00
$102.00
158
Screw Mercedes-Benz
Mercedes-Benz Description: Brake anchor to steering knuckle. Caliper to wheel bearing. Caliper to steering knuckle. Brake caliper to wheel carrier left. Rear wheel bearing, left and right.
$6.75
$6.75
