Vario Roof Control for 1999 Mercedes-Benz SL600
No.
Part # / Description / Price
Price
10
Electrical Wiring Harness
Mercedes-Benz
Mercedes-Benz Notes: THE OLD PART MUST NO LONGER BE INSTALLED
Description: Trunk lid.
10
Electrical Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: THE OLD PART MUST NO LONGER BE INSTALLED
Description: Trunk lid.
30
Felt Strip Mercedes-Benz
Mercedes-Benz Description: Scuff protection for electric cables left. For curtain. Felt strip. Soundproofing. Dampening, antenna amplifier to rear-end door. In liftgate trim 70X55X3MM.
100
$45.00
110
$52.00
120
$52.00
132
$320.00
160

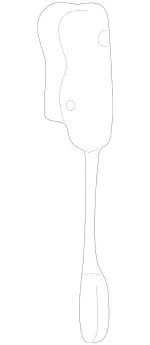

Switch Mercedes-Benz
Mercedes-Benz Description: Limit switch tubular frame trunk lid, to hydraulic cylinder left.
$60.00
$60.00
170
$90.00
180
$64.00
190
$47.50
230
Control Unit Mercedes-Benz
Mercedes-Benz Notes: PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
IMPORTANT! CONTROL UNIT MUST BE CODED AFTER INSTALLATION IN VEHICLE!
IMPORTANT! CONTROL UNIT MUST BE CODED AFTER INSTALLATION IN VEHICLE!
Description: In rear for soft-top hydraulics.
$1,690.00
$1,690.00
230
Control Unit Mercedes-Benz
Mercedes-Benz Notes: PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
Description: Spoiler.
$645.00
$645.00
240
Nut Mercedes-Benz
Mercedes-Benz Description: Control unit fixture. Antenna fastening in center console. Pedal assembly hydraulics. Cable connector to fire wall. Mounting parts. Mounting, clutch cable. Multiway connector to fire wall. Fuse box to fire wall. Fire wall,right,below plug distributor.
$1.90
$1.90
900
Plug Mercedes-Benz
Mercedes-Benz Description: Rear-end window roller blind. 6 PIN SLK2.8Model 1: SLKModel 2: 2.8Slots: 6Release tool: W220 589 01 99 62. TANK CONNECTOR X25/4. 6 PIN SLK2.8Model 1: SLKModel 2: 2.8Slots: 6Release tool: W220 589 01 99 62. Rear window roller blind connector x19/3*1. 6 pin ...
$7.00
$7.00
901
Plug Mercedes-Benz
Mercedes-Benz Description: Tin-plated. 0.5-0.75 MM2 SLK2.8. Front door connector to frame floor system. 0.5-0.75 mm2 slk2.8. Circuit 15r/58d connector x39/29. 0.5-0.75 mm2 slk2.8. Module box separation point x35/15. 0.5-0.75 mm2 slk2.8. Radio remote control separation point for central locking x35/71. 0.5-0.75 mm2 slk2.8. Silver. 0.5-0.75 mm2 slk2.8. 0,5-1,0mm. 0.5-0.75 mm2 slk2.8. To a 220 545 92 28. 0.5-0.75 mm2 slk2.8.
$4.00
$4.00
905
Plug Mercedes-Benz
Mercedes-Benz Description: Part. Connector, cockpit/interior, black x18. 14 pin slk2.8
model 1: slk
model 2: 2.8
slots: 14. Connector, interior/engine black. 14 pin slk2.8
model 1: slk
model 2: 2.8
slots: 14. Separation point 9 x99/9. 14 pin slk2.8
model 1: slk
model 2: 2.8
slots: 14.
model 1: slk
model 2: 2.8
slots: 14. Connector, interior/engine black. 14 pin slk2.8
model 1: slk
model 2: 2.8
slots: 14. Separation point 9 x99/9. 14 pin slk2.8
model 1: slk
model 2: 2.8
slots: 14.
$4.90
$4.90
916
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 0.75mm2. 0.75 MM2
Leitungsquerschnitt Min/Max: 0,5-0,75mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: MQS.
Leitungsquerschnitt Min/Max: 0,5-0,75mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: MQS.
$5.25
$5.25
920
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Description: Folding top control unit n52. 52 pin mqs. Seat adjustment control unit n31,n32. 52 pin mqs. Engine control module n3/10. 52 pin mqs. Control module sam/srb rear n10/8. 52 pin mqs. Soft top control module n52. 52 pin mqs. Common-rail control module n39/2,. 52 pin mqs.
$17.50
$17.50
921
Electric Line Mercedes-Benz
Mercedes-Benz Notes: CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED.
SEE WIS FOR REPAIR INSTRUCTIONS.
=================================================================================================
SOLDER CONNECTOR SLEEVES: TOTAL WIRE CROSS-SECTION:
A 001 546 99 41 GREEN 0.7 - 2.4 MM2
A 002 546 00 41 RED 2.0 - 4.0 MM2
A 002 546 01 41 BLUE 3.5 - 8.0 MM2
A 002 546 11 41 YELLOW 7.5 - 12.0 MM2
BUTT JOINT:
A 002 546 13 41 0.5 MM2
A 002 546 14 41 0.8 MM2
A 002 546 15 41 1.3 MM2
A 002 546 16 41 2.0 MM2
===================================================================================================
$7.00
$7.00
938
Male Spade Connector Mercedes-Benz
Mercedes-Benz Description: Tin-plated. 1.5-2.5 MM2 SLK2.8Leitungsquerschnitt Min/Max: 1,5-2,5mm2Oberflächenschutz PINs: SnELA: -Model 1: SLKModel 2: 2.8Release tool: W220 589 01 99 62Crimp tool: W220 589 01 99 07. FRONT DOOR CONNECTOR TO FRAME FLOOR SYSTEM. 1.5-2.5 MM2 SLK2.8Leitun ...
$4.00
$4.00
938
Plug Mercedes-Benz
Mercedes-Benz Description: Module box separation point x35/15. 3-pin. Radio remote control separation point for central locking x35/71. 3-pin. Separation point trunk lid 14-pin x8/4. 3-pin. Control unit box/engine sep. Point x35/63. 3-pin.
$4.40
$4.40
952
Plug Mercedes-Benz
Mercedes-Benz Description: Connector cockpit/frame floor system x18*2. 6-pin slk2.8model 1: slkmodel 2: 2.8slots: 6release tool: w220 589 01 99 62. Separation point trunk lid 6-pin x8/4. 6-pin slk2.8model 1: slkmodel 2: 2.8slots: 6release tool: w220 589 01 99 62. Connector for engin ...
$8.50
$8.50
