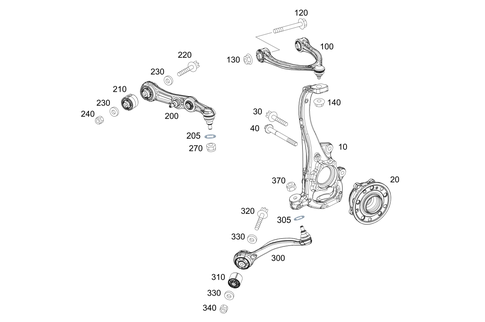

Steering Knuckle and Transverse Control Arm for 2020 Mercedes-Benz C43 AMG
No.
Part # / Description / Price
Price
30
Hexalobular Head Screw
Mercedes-Benz
Mercedes-Benz Description: M12X57,5
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. To left steering knuckle, front axle. Wheel bearing left rear. Drive shaft to front wheel hub, left. Wheel bearing to steering knuckle at left M12X57,5.
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. To left steering knuckle, front axle. Wheel bearing left rear. Drive shaft to front wheel hub, left. Wheel bearing to steering knuckle at left M12X57,5.
$6.50
$6.50
40
Hexalobular Head Screw Mercedes-Benz
Mercedes-Benz Description: M12x1,5x101. To left steering knuckle, front axle. Wheel bearing to left steering knuckle.
$13.00
$13.00
120
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: M10X95
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Transverse control arm to body at left.
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Transverse control arm to body at left.
$11.00
$11.00
140
Hex Nut W Flange + Piece Mercedes-Benz
Mercedes-Benz Description: M14X1,5
Diameter: 14mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm. Arm to steer. Knuck. Transverse control arm to left body. Nut, ball joint, transverse control arm, left, upper, front axle.
Diameter: 14mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm. Arm to steer. Knuck. Transverse control arm to left body. Nut, ball joint, transverse control arm, left, upper, front axle.
$3.70
$3.70
210
Bearing Element, Elastom Mercedes-Benz
Mercedes-Benz Description: Left, adjustable bearing. Left, only for camber/caster adjustment.
$142.00
$142.00
210
Bearing Element, Elastom Mercedes-Benz
Mercedes-Benz Description: Left, adjustable bearing. At left, adjustment bearing.
$119.00
$119.00
220
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: M14X1,5X125
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Left spring link to integral carrier. Torque strut to integral carrier, left. Spring link left to frame-type integral support.
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Left spring link to integral carrier. Torque strut to integral carrier, left. Spring link left to frame-type integral support.
$34.50
$34.50
230
$4.50
240
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M14X1.5
Diameter: 14mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 21mm. Strut rod to integral carrier. Cross strut to integral carrier. Transverse control arm to left steering knuckle. Torque strut to frame-type int. Supp.. Lower transverse control arm to left wheel carrier.
Diameter: 14mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 21mm. Strut rod to integral carrier. Cross strut to integral carrier. Transverse control arm to left steering knuckle. Torque strut to frame-type int. Supp.. Lower transverse control arm to left wheel carrier.
$7.00
$7.00
240
$8.00
270
Bihexagonal Nut W Flange Mercedes-Benz
Mercedes-Benz Description: Supporting joint to left wheel carrier. Supporting joint to steering knuckle left. Spring link to steering knuckle, left. Spring control arm to steering knuckle, left.
$10.00
$10.00
310
Bearing Element, Elastom Mercedes-Benz
Mercedes-Benz Notes: NEGATIVE CHANGE IN CASTER ( - 3 MM )
Description: Tension rod left.
310
Bearing Element, Elastom Mercedes-Benz
Mercedes-Benz Notes: POSITIVE CHANGE IN CASTER ( + 3 MM )
Description: Tension rod left.
$142.00
$142.00
370
Nut With Clamping Piece Mercedes-Benz
Mercedes-Benz Description: Lower control arm to steering knuckle, left. M16. Transverse control arm at left wheel carrier.
$9.75
$9.75
