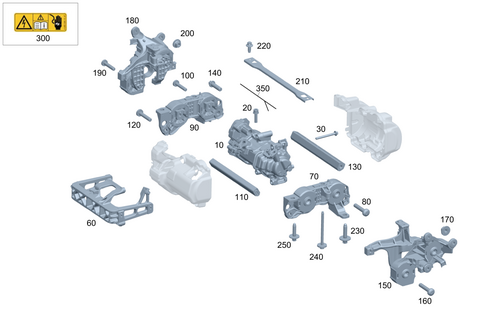

Refrigerant Compressor for 2022 Mercedes-Benz EQS 450+
No.
Part # / Description / Price
Price
20
Cap Screw
Mercedes-Benz
Mercedes-Benz Description: M8X30
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1,25mm. A/C line mount. Ac lines at compressor. Compressor to support. Screw, fastening, air conditioning suction/pressure line, refrigerant compressor. A/C compressor. Pressure line to compressor.
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1,25mm. A/C line mount. Ac lines at compressor. Compressor to support. Screw, fastening, air conditioning suction/pressure line, refrigerant compressor. A/C compressor. Pressure line to compressor.
$2.40
$2.40
60
Retaining Plate Mercedes-Benz
Mercedes-Benz Description: Bracket, refrigerant compressor, electrical. Retaining plate.
80
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Bearing to holder, left. M8X40
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm.
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm.
$2.50
$2.50
140
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Strut to bearing, left and right
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm.
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm.
140
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Drive shaft to supporting tube, left and right. M14X1,5X50
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Strut to bearing, left and right. Drive shaft to left and right axle bridge.
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Strut to bearing, left and right. Drive shaft to left and right axle bridge.
$9.50
$9.50
170
Nut-And-Washer Assembly Mercedes-Benz
Mercedes-Benz Description: Wiper system to firewall. M8
Diameter: 8mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,25mm
Outside diameter: 23mm
Width across flats: 13mm. Bracket to body shell. Holder to left wheel well. Wiper system mount to buffer. Wiper system to partition. Nut, fastening, wiper, wiper system. Elastomer bearing mount to body-in-white, left.
Diameter: 8mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,25mm
Outside diameter: 23mm
Width across flats: 13mm. Bracket to body shell. Holder to left wheel well. Wiper system mount to buffer. Wiper system to partition. Nut, fastening, wiper, wiper system. Elastomer bearing mount to body-in-white, left.
$2.70
$2.70
220
$4.90
230
Screw W Washer Assembly Mercedes-Benz
Mercedes-Benz Description: Intermediate bearing to mount. M8x35. To rear carrier, left and right.
240
Hexagon Head Screw Mercedes-Benz
Mercedes-Benz Description: Elastomer bearing mount to carrier/mounting support. To center carrier, left and right.
300
Information Label Mercedes-Benz
Mercedes-Benz Description: High voltage on intake manifold. To intake hose. Clean air line. Bonded to cover, high voltage. A/C compressor, electric. Bonded to compressor, high voltage. Left damper filter. To left air filter housing. To mass air flow sensor.
350
Electrical Wiring Harness Mercedes-Benz
Mercedes-Benz Description: Refrigerant compressor to engine compartment connecting point.
350
Electrical Wiring Harness Mercedes-Benz
Mercedes-Benz Description: Refrigerant compressor to engine compartment connecting point.
