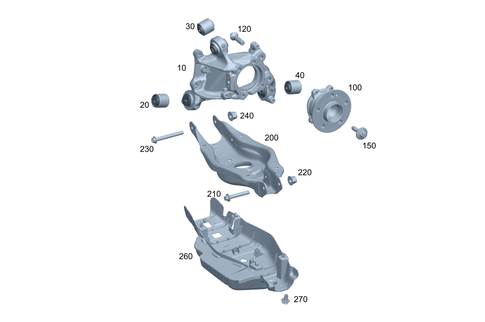

Rear Axle Suspension for 2023 Mercedes-Benz EQB 350
No.
Part # / Description / Price
Price
20
$17.50
40
Spring Link Bushing
Mercedes-Benz
Mercedes-Benz Description: Spring link to left wheel carrier. Spring link to steering knuckle, left.
40
Spring Link Bushing Mercedes-Benz
Mercedes-Benz Description: Spring link to left wheel carrier. Spring link to steering knuckle, left.
100
$234.00
120
Hexalobular Head Screw Mercedes-Benz
Mercedes-Benz Description: M12X1,5X45
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Wheel bearing to wheel carrier left. Wheel bearing to steering knuckle at left. Front left. Screw, double-row angular ball bearing, left.
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Wheel bearing to wheel carrier left. Wheel bearing to steering knuckle at left. Front left. Screw, double-row angular ball bearing, left.
$10.50
$10.50
150
Hexalobular Head Screw Mercedes-Benz
Mercedes-Benz Description: Left side shaft, outboardDiameter: 14mmStrength / hardness class: 10.9Thread code letter: MThread pitch: 1,5mm. Rear axle shaft to left and right wheel flangeDiameter: 14mmStrength / hardness class: 10.9Thread code letter: MThread pitch: 1,5mm. Bolt, rear ...
$5.50
$5.50
210
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Cross stabilizer front to side element. M12X1.5X 80-10.9
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Spring control arm to wheel bearing left. Spring link to left wheel carrier. Torsion bar to rear axle. Spring link to left rear axle carrier. Camber strut to wheel carrier.
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Spring control arm to wheel bearing left. Spring link to left wheel carrier. Torsion bar to rear axle. Spring link to left rear axle carrier. Camber strut to wheel carrier.
$10.00
$10.00
230
Cap Screw Mercedes-Benz
Mercedes-Benz Description: Spring link to left rear axle carrier. M12x1,5x107. Spring link to rear axle bracket left. Spring link to subframe, left.
$22.00
$22.00
270
Expansion Rivet Mercedes-Benz
Mercedes-Benz Description: Left trim to spring link
Diameter: 9,6mm. Trim mount to rear axle
Diameter: 9,6mm. Cover at left to spring control arm
diameter: 9,6mm. Left spring link trim mount
Diameter: 9,6mm. Expansion rivet, trim, spring link, left, rear axle
Diameter: 9,6mm. Attachment, trim to rear axle
diameter: 9,6mm. Left trim to thrust arm
Diameter: 9,6mm.
Diameter: 9,6mm. Trim mount to rear axle
Diameter: 9,6mm. Cover at left to spring control arm
diameter: 9,6mm. Left spring link trim mount
Diameter: 9,6mm. Expansion rivet, trim, spring link, left, rear axle
Diameter: 9,6mm. Attachment, trim to rear axle
diameter: 9,6mm. Left trim to thrust arm
Diameter: 9,6mm.
410
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: SHOCK ABSORBER TO LOWER CONTROL ARMDiameter: 12mmStrength / hardness class: 10.9Thread code letter: MThread pitch: 1,5mm. Trailing arm to mounting consoleDiameter: 12mmStrength / hardness class: 10.9Thread code letter: MThread pitch: 1,5mm. Left trailing a ...
$37.00
$37.00
420
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M12X1.5
Diameter: 12mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Outside diameter: 26mm
Width across flats: 18mm. Linkage to torsion bar and shock absorber. Torsion bar linkage to left spring link. Trailing arm to mounting console. Left trailing arm to mounting support. Left seat belt buckle and center seat belt limit stop to body-in-white.
Diameter: 12mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Outside diameter: 26mm
Width across flats: 18mm. Linkage to torsion bar and shock absorber. Torsion bar linkage to left spring link. Trailing arm to mounting console. Left trailing arm to mounting support. Left seat belt buckle and center seat belt limit stop to body-in-white.
$4.70
$4.70
440
$2.00
470
Self-Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Left mounting console to frame. Longitudinal control arm to frame, left m12x1.5x39.5. Left trailing arm to body.
$7.25
$7.25
600
Eccentric Screw Mercedes-Benz
Mercedes-Benz Description: M12x1,5x86. Tie rod to rear axle carrier, left and right. Tie rod to subframe, left.
$12.50
$12.50
610
Window Mercedes-Benz
Mercedes-Benz Description: Tie rod to rear axle carrierDiameter: 12,1mmInside diameter: 12,1mmOutside diameter: 31mmMaterial thickness: 3mm. CAMBER STRUTS TO REAR SUBFRAMEDiameter: 12,1mmInside diameter: 12,1mmOutside diameter: 31mmMaterial thickness: 3mm. TIE ROD TO REAR SUBFRAMEDi ...
$0.30
$0.30
