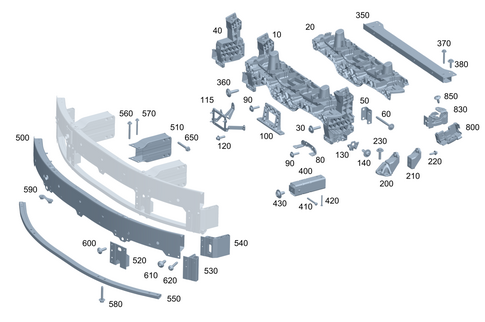

Front Reinforcement and Radiator Support for 2025 Mercedes-Benz EQE 500 SUV
No.
Part # / Description / Price
Price
360
Pan Head Screw W Collar
Mercedes-Benz
Mercedes-Benz Description: Holder to body-in-white. Center reinforcement to reinforcing tube. To carrier. Trim mount. Armrest to rear panel. Mount, latch lower part to reinforcement. Mount filler neck. Integral carrier fastening. Mounting, cover.
$1.50
$1.50
370
Bolt And Washer Assembly Mercedes-Benz
Mercedes-Benz Description: Left and right reinforcing tube to longitudinal member
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm.
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm.
370
Bolt And Washer Assembly Mercedes-Benz
Mercedes-Benz Description: Left and right reinforcing tube to longitudinal member. M8X65
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,25mm. Reinforcing tube mount to body-in-white.
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,25mm. Reinforcing tube mount to body-in-white.
380
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: M8x25-8.8. Fuel tank to console. Bracket to mounting plate or to transmission. Bracket to bumper. Shackle to torsion bar. Intermediate bearing to frame.
$4.20
$4.20
380
Hexagon Head Screw Mercedes-Benz
Mercedes-Benz Description: M8x32,5. For hinge to left door, top and bottom. Left and right reinforcing tube to longitudinal member.
$3.50
$3.50
410
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Left lower impact absorber to mounting console. M8X80
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Jacket tube to front crossmember. Front actuator mount. Actuator to transmission housing. Screw, mount, mounting support, crossmember, front.
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Jacket tube to front crossmember. Front actuator mount. Actuator to transmission housing. Screw, mount, mounting support, crossmember, front.
$14.00
$14.00
420
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Lower impact absorber to left integral carrier
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm.
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm.
$32.50
$32.50
430
Bolt And Washer Assembly Mercedes-Benz
Mercedes-Benz Description: Shield to transmission housing. M8X20
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Rear seat, left. Lower left and right absorber to front support. Left and right absorber mount. Left and right retaining bracket mount. Lower absorber to left and right integral carrier. Screwith bolt, mount, support, crash box.
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Rear seat, left. Lower left and right absorber to front support. Left and right absorber mount. Left and right retaining bracket mount. Lower absorber to left and right integral carrier. Screwith bolt, mount, support, crash box.
$1.00
$1.00
540
Cross-Member Mercedes-Benz
Mercedes-Benz Description: Support, headlamp, left. Support, outer, left, crossmember, front.
540
Cross-Member Mercedes-Benz
Mercedes-Benz Description: Support, headlamp, right. Support, outer, right, crossmember, front.
560
Hex Head Screw W Flange Mercedes-Benz
Mercedes-Benz Description: Left and right impact absorber to crossmember on inside. M14x1,5x130. Left and right absorber mount to crossmember.
570
Step Bumper Bolt Mercedes-Benz
Mercedes-Benz Description: Spring loaded type. Left and right impact absorber to crossmember on outside
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Left and right absorber mount to crossmember
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Type 2.
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Left and right absorber mount to crossmember
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Type 2.
$8.25
$8.25
580
Hexagon Head Screw Mercedes-Benz
Mercedes-Benz Description: M8x55. Lower crossmember mount. Crossmember to firewall. Wiper system mount to firewall. Lower left and right bracing mount.
$7.00
$7.00
600
Upper Hinge Bolt Mercedes-Benz
Mercedes-Benz Description: Hinges & hardware. Rails & components. Handles & locks, passenger side door.
$1.10
$1.10
620
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Left side crossmember to upper crossmember. M8X50
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Center reinforcement mount. Left and right side crossmember mount. Lower crossmember mount.
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Center reinforcement mount. Left and right side crossmember mount. Lower crossmember mount.
$3.20
$3.20
650
Hexagon Head Screw Mercedes-Benz
Mercedes-Benz Description: Left impact absorber to longitudinal member. M12x1,5x98. Absorber to left and right longitudinal member. Reinforcement mount.
$25.00
$25.00
800
Switch Mercedes-Benz
Mercedes-Benz Description: Left latch/plug. Engine hood catch, left. Engine hood latch, driver side. Hood catch right. Right limit switch. Contact switch, hood catch, left. Engine hood contact for anti-theft alarm system. Left limit switch.
$26.00
$26.00
830
Hood Catch Mercedes-Benz
Mercedes-Benz Description: To reinforcement at left and right. To crossmember. Left and right lower part. Left and right hood. Bottom. Latch, lower part, hood catch.
$99.00
$99.00
