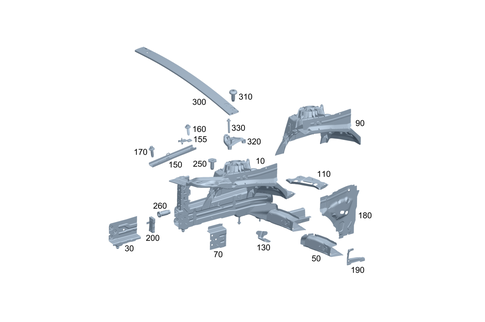

Wheel Well, Front Axle Carrier for 2025 Mercedes-Benz GLC63 AMG S E Performance
No.
Part # / Description / Price
Price
130
Holder
Mercedes-Benz
Mercedes-Benz Description: Bracket, longitudinal member, brake hose, front, left
Diameter: 7mm
Outside diameter: 14,5mm.
Diameter: 7mm
Outside diameter: 14,5mm.
$10.50
$10.50
160
Self-Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Outside left. Mount, left holder. Lower left and right rear panel. Left strut mount. Rear strut mount. Belt guide, B-pillar, left M10X35. Center bearing to rear floor. Height adjuster to upper left B-pillar. Left strut to suspension strut tower.
$2.50
$2.50
200
250
Adjustment Screw, Pulley Mercedes-Benz
Mercedes-Benz Description: Left and right front module end stop. Upper left and right.
$6.50
$6.50
260
Hex Head Screw W Flange Mercedes-Benz
Mercedes-Benz Description: M10x25. Left and right longitudinal member. Left and right support. Front left and right.
310
Screw Mercedes-Benz
Mercedes-Benz Description: Fastening, strut to frame and bracket. Strut to frame-type integral support. Fastening, rear strut. Strut to integral carrier at center. Left and right support mount. Backrest attachment. Front strut to integral carrier and longitudinal member. Backrest to seat cushion. Screw, cross strut, suspension strut tower. Mount, left and right strut.
$2.80
$2.80
330
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Integral carrier at center to body-in-white. M10X65
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. To left and right mounting console. Mounting bolt, front axle support. Mounting support to suspension strut tower. Left and right mounting console mount. High-voltage battery to body-in-white. Left and right strut mount to shock-absorber strut console. Left holder.
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. To left and right mounting console. Mounting bolt, front axle support. Mounting support to suspension strut tower. Left and right mounting console mount. High-voltage battery to body-in-white. Left and right strut mount to shock-absorber strut console. Left holder.
$6.00
$6.00
1000
Integral Carrier Mercedes-Benz
Mercedes-Benz Notes: THE OLD PART MUST NO LONGER BE INSTALLED
Description: Complete all-wheel drive.
1200
Self-Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Integral carrier mount. Mounting bolt, front axle support. Integral carrier at front to body-in-white M14X50.
1240
Self-Tapping Screw Mercedes-Benz
Mercedes-Benz Description: M12x85. Rear integral carrier. Integral carrier mount. Mounting bolt, front axle support.
1250
$12.50
