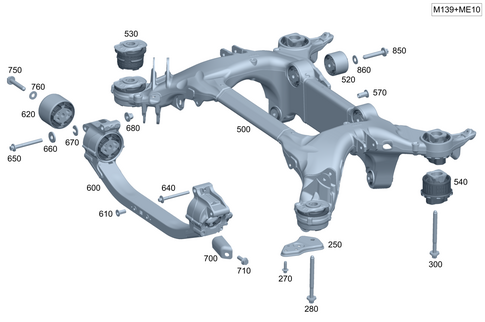

Rear Axle Carrier for 2026 Mercedes-Benz GLC63 AMG S E Performance
No.
Part # / Description / Price
Price
50
Spring Link Bushing
Mercedes-Benz
Mercedes-Benz Description: Spring link to rear axle carrier, left and right. Spring link to rear axle bracket left.
50
Spring Link Bushing Mercedes-Benz
Mercedes-Benz Description: Spring link to rear axle carrier, left and right. Spring link to rear axle bracket left. Torsion bushings, spring control arm/semi-trailing arm, rear axle.
$45.00
$45.00
60
Rear Axle Diff Bearing Mercedes-Benz
Mercedes-Benz Description: Rear axle differential to rear cross brace. Rear axle differential to left rear crossmember.
280
Screw W Washer Assembly Mercedes-Benz
Mercedes-Benz Description: Rear axle carrier to front frame floor assembly. Rear subframe to frame floor unit, front. Screwith bolt, decoupling element, front, rear axle carrier.
$18.50
$18.50
450
Adapter, Tie Rod Mercedes-Benz
Mercedes-Benz Description: To rear axle carrier. Adapter, tie rod, rear axle carrier.
$92.00
$92.00
520
Rear Axle Diff Bearing Mercedes-Benz
Mercedes-Benz Description: Rear axle differential to rear cross brace. Decoupling element, rear, rear axle differential.
530
Axle Sub-Frame Suspension Mercedes-Benz
Mercedes-Benz Notes: THE OLD PART MUST NO LONGER BE INSTALLED
Description: Decoupling element, rear axle carrier, front.
530
540
600
Bearing Bracket Mercedes-Benz
Mercedes-Benz Description: Front crossmember. Mounting support, differential, rear axle.
600
Bearing Bracket Mercedes-Benz
Mercedes-Benz Description: Front crossmember. Mounting support, differential, rear axle.
640
Self-Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Integral carrier at longitudinal member, center. M10x105. Cross member connection. Bearing bracket to rear axle carrier.
$11.50
$11.50
650
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Pendulum support to integral carrier. M12X110
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Pendulum support at frame-typeintegral support. Bearing bracket to rear axle carrier.
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Pendulum support at frame-typeintegral support. Bearing bracket to rear axle carrier.
$11.50
$11.50
650
Hexagon Head Screw Mercedes-Benz
Mercedes-Benz Description: Left impact absorber to longitudinal member. M12x107. Bearing bracket to rear axle carrier.
$3.20
$3.20
660
Window Mercedes-Benz
Mercedes-Benz Description: Steering gear to frame. Cross member, top, at steering knuckle, left. Transverse control arm at left wheel carrier. Bearing bracket to rear axle carrier.
$12.00
$12.00
680
Nut-And-Washer Assembly Mercedes-Benz
Mercedes-Benz Description: M12X1,5
Diameter: 12mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Outside diameter: 32mm
Width across flats: 18mm. Stabilizer bar linkage to steering knuckle. Torsion bar linkage mount. On left longitudinal member. Steering gear to frame. Torsion bar linkage to steering knuckle. Nut, outer, rear axle carrier, mounting support, drive unit, rear. Bearing bracket to rear axle carrier. Mount, strut to shock-absorber strut tower, left and right.
Diameter: 12mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Outside diameter: 32mm
Width across flats: 18mm. Stabilizer bar linkage to steering knuckle. Torsion bar linkage mount. On left longitudinal member. Steering gear to frame. Torsion bar linkage to steering knuckle. Nut, outer, rear axle carrier, mounting support, drive unit, rear. Bearing bracket to rear axle carrier. Mount, strut to shock-absorber strut tower, left and right.
$4.50
$4.50
710
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Trailer hitch to longitudinal member reinforcement. M12X1.5X35-10.9
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Cross member. Repair panel to left and right bearing bracket.
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Cross member. Repair panel to left and right bearing bracket.
$5.00
$5.00
750
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Electric drive to cross bridge at rear left and right. M14X80
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Rear axle differential to front cross brace. Bearing bracket to axle carrier. Cross bridge to rear axle carrier on left and right.
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Rear axle differential to front cross brace. Bearing bracket to axle carrier. Cross bridge to rear axle carrier on left and right.
$8.50
$8.50
760
Front Support Washer Mercedes-Benz
Mercedes-Benz Description: Crossmember mountDiameter: 14mmInside diameter: 14mmOutside diameter: 30mmMaterial thickness: 2,5mm. Support to left and right bodyDiameter: 14mmInside diameter: 14mmOutside diameter: 30mmMaterial thickness: 2,5mm. Bearing bracket to left and right rear ax ...
$3.00
$3.00
