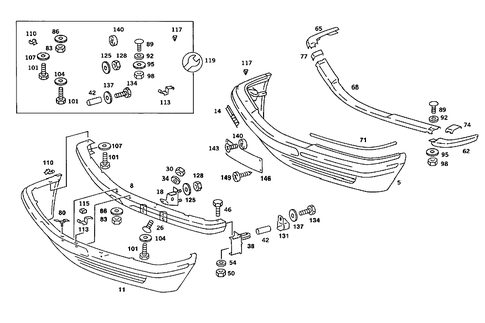

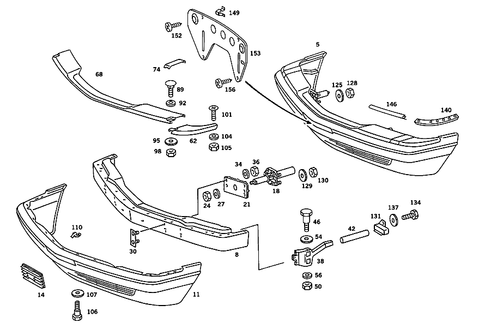

Front Bumper for 1985 Mercedes-Benz 380SE
No.
Part # / Description / Price
Price
5
Front Bumper
Mercedes-Benz
Mercedes-Benz Notes: Up to ident. no.:
021 011816
022,023 045631
032,033 021853
036,037 014397
Description: With covering.
5
Front Bumper Mercedes-Benz
Mercedes-Benz Notes: IF NOT FITTED WITH HEADLAMP CLEANING DEVICE,ORDER ADDITIONALLY:2 OF 123 997 03 86 PLUG
FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 096819
IN CASE OF HEADLAMP WIPER/WASHER,ORDER ADDITIONALLY: 1X 126 820 45 44 1X 126 820 46 44 2X 201 820 02 45 2X 201 869 01 24 1X 126 889 19 63 1X 126 889 20 63
FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 096819
IN CASE OF HEADLAMP WIPER/WASHER,ORDER ADDITIONALLY: 1X 126 820 45 44 1X 126 820 46 44 2X 201 820 02 45 2X 201 869 01 24 1X 126 889 19 63 1X 126 889 20 63
11
Paneling Mercedes-Benz
Mercedes-Benz Notes: Up to ident. no.:
021 011816
022,023 045631
032,033 021853
036,037 014397
Description: Front bumper.
14
Flap Mercedes-Benz
Mercedes-Benz Notes: Up to ident. no.:
021 011816
022,023 045631
032,033 021853
036,037 014397
Description: Right,towing bracket.
26
Screw Mercedes-Benz
Mercedes-Benz Description: Left and right ornamental covers to central ornamental cover. Bracket to bumper. Left bumper face bar to right bumper face bar. Stiffening to front bumper. Covering to front bumper. Energy-absorbing unit and mounting to rear bumper.
$2.70
$2.70
30
Wiper Arm Nut Mercedes-Benz
Mercedes-Benz Description: Master cylinder to brake booster. Rear bumper to rear body panel cross member. Electric cable to alternator. Pedal assembly to fire wall. Front bumper to cross member. Armrest to backrest. Bracket to bumper. Left stiffening to right stiffening. On front door,bottom.
$3.40
$3.40
46
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Main muffler suspension. M8x16. Central muffler suspension. Bracket on rear axle m 8x16.
$3.20
$3.20
68
Fender Skirt Mercedes-Benz
Mercedes-Benz Notes: IF NOT FITTED WITH HEADLAMP CLEANING DEVICE,ORDER ADDITIONALLY:2 OF 123 997 03 86 PLUG
UP TO CHASSIS: 021 015555 022,023 058742 032,033 028385 036,037 019333
UP TO CHASSIS: 021 015555 022,023 058742 032,033 028385 036,037 019333
Description: Bumper panelling,central. With hole.
68
Fender Skirt Mercedes-Benz
Mercedes-Benz Notes: FROM CHASSIS:
021 015556
022,023 058743
032,033 028386
036,037 019334
Description: Bumper panelling,central. Less hole.
92
Window Mercedes-Benz
Mercedes-Benz Description: Left and right ornamental covers to central ornamental cover.
$2.40
$2.40
101
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Additional blower to front central stiffening. Bracket to auxiliary fan.
$2.40
$2.40
107
Window Mercedes-Benz
Mercedes-Benz Description: Ornamental cover to bumper and to panelling. Luggage net to backrest. Rubber mats to front compartment floor. Front seat backrest,rear.
110
$5.50
113
117
Grommet Mercedes-Benz
Mercedes-Benz Description: To plug the holes used for headlamp washer. To 123 880 09 70.
$1.40
$1.40
125
Window Mercedes-Benz
Mercedes-Benz Description: Front bumper to cross member. Rear bumper to rear body panel cross member. Engine support to tunnel reinforcement.
128
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: Cable to cable connector. Front bumper to cross member. Hinge lever to support upper part. Rear bumper to rear body panel cross member. Bell housing with transmission to intermediate flange.
$2.00
$2.00
143
Screw Mercedes-Benz
Mercedes-Benz Description: Lower wedge-type stop, left. M5X16
Diameter: 5mm
Strength / hardness class: 4.8
Thread code letter: M
Thread pitch: 0,8mm. Upper wedge-type stop. Rear wedge-type stop, left. As required m 5x16.
Diameter: 5mm
Strength / hardness class: 4.8
Thread code letter: M
Thread pitch: 0,8mm. Upper wedge-type stop. Rear wedge-type stop, left. As required m 5x16.
$1.50
$1.50
149
Pan Head Screw Mercedes-Benz
Mercedes-Benz Description: For license plate. Customs license plate to moulding. Rear license plate.
$8.00
$8.00
No.
Part # / Description / Price
Price
5
Front Bumper 1 Mercedes-Benz
Mercedes-Benz Notes: Up to ident. no.:
032,033 021853
037 014397
120 017268
Description: With covering.
5
Front Bumper Mercedes-Benz
Mercedes-Benz Notes: EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS,SEE FOOTN.851
UP TO END OF MODEL YEAR'85
UP TO END OF MODEL YEAR'85
11
Paneling Mercedes-Benz
Mercedes-Benz Notes: Up to ident. no.:
032,033 021853
037 014397
120 017268
Description: Front bumper.
11
Paneling Mercedes-Benz
Mercedes-Benz Notes: Up to ident. no.:
032,033 021853
037 014397
120 017268
Description: Front bumper.
14
Flap Mercedes-Benz
Mercedes-Benz Notes: Up to ident. no.:
032,033 021853
037 014397
120 017268
Description: Right,towing bracket.
24
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M14X1.5
Diameter: 14mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 21mm. Tie rod to steering arm. Energy-absorbing unit to plate. Cross strut to shackle. Outside left. Track rod left. Mounting and clamp to energy-absorbing unit.
Diameter: 14mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 21mm. Tie rod to steering arm. Energy-absorbing unit to plate. Cross strut to shackle. Outside left. Track rod left. Mounting and clamp to energy-absorbing unit.
27
Washer Mercedes-Benz
Mercedes-Benz Description: Intermediate lever to pivot bearing. Mounting and clamp to energy-absorbing unit. Energy-absorbing unit to plate.
101
Screw Mercedes-Benz
Mercedes-Benz Description: Panelling to bumper. Temperature sensor to front bumper. Lever to rear end central part. Hinge to front loading floor. Rear backrest detent to rear seat cushion. Stop to rear panel door. Lateral ornamental cover to panelling. Door catch on door left.
$9.25
$9.25
129
Washer Mercedes-Benz
Mercedes-Benz Description: FRONT BUMPER TO CROSS MEMBERDiameter: 10,5mmStrength / hardness class: 140 HVInside diameter: 10,5mmOutside diameter: 30mmMaterial thickness: 2,5mm. REAR BUMPER TO REAR BODY PANEL CROSS MEMBERDiameter: 10,5mmStrength / hardness class: 140 HVInside diameter ...
$4.00
$4.00
130
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M10
Diameter: 10mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 16mm. Bracket to transmission. Energy-absorbing unit to cross member. Bell housing to intermediate flange. Battery cable to cable connector. Wiper linkage to gearing. Cable to starting motor,terminal 30. Torsion bar to frame floor unit. Front bumper to cross member.
Diameter: 10mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 16mm. Bracket to transmission. Energy-absorbing unit to cross member. Bell housing to intermediate flange. Battery cable to cable connector. Wiper linkage to gearing. Cable to starting motor,terminal 30. Torsion bar to frame floor unit. Front bumper to cross member.
131
Bracket Mercedes-Benz
Mercedes-Benz Notes: EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS,SEE FOOTN.851
UP TO END OF MODEL YEAR'85
UP TO END OF MODEL YEAR'85
131
Bracket Mercedes-Benz
Mercedes-Benz Notes: EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS,SEE FOOTN.851
UP TO END OF MODEL YEAR'85
UP TO END OF MODEL YEAR'85
140
Seal Mercedes-Benz
Mercedes-Benz Notes: FROM CHASSIS
033 019678
120 013206
Description: Front left,between bumper and fender.
140
Seal Mercedes-Benz
Mercedes-Benz Notes: FROM CHASSIS
033 019678
120 013206
Description: Front right,between bumper and fender.
156
Motor Screw Mercedes-Benz
Mercedes-Benz Description: Covering to stiffening upper part, front. Vacuum element at filler neck flap.
$1.90
$1.90
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
No.
Part # / Description / Price
Price
128
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: Cable to cable connector. Front bumper to cross member. Hinge lever to support upper part. Rear bumper to rear body panel cross member. Bell housing with transmission to intermediate flange.
$2.00
$2.00
158
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: FRONT LICENSE PLATE TO PLATE
Diameter: 4,8mm
Thread code letter: F. Interior handle assembly to door
diameter: 4,8mm
thread code letter: f.
Diameter: 4,8mm
Thread code letter: F. Interior handle assembly to door
diameter: 4,8mm
thread code letter: f.
