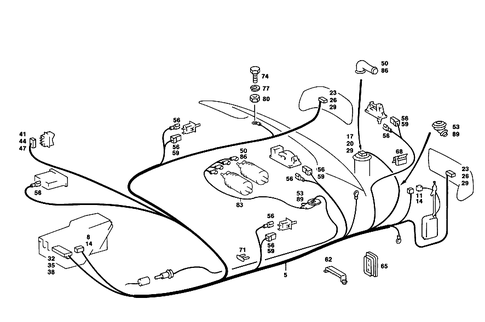

Tail Lamp Cable Harness and Fuel Pump Cable for 1985 Mercedes-Benz 380SE
No.
Part # / Description / Price
Price
5
Wiring Harness
Mercedes-Benz
Mercedes-Benz Notes: FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.
032,033 047147 036,037 035554
5
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.
032,033 047147 036,037 035554
20
Cap Mercedes-Benz
Mercedes-Benz Description: Back-up lamp cable. To 007 545 00 28, 015 545 49 28. To 006 545 78 28. Fuel gauge sender unit. 4-pole to 015 545 49 28. Quadruple to 009 545 52 28. To 015 545 49 2,. Turn signal and side marker lamps left. To 009 545 52 28 (asd).
$5.00
$5.00
26
Cap Mercedes-Benz
Mercedes-Benz Description: To 006 545 81 28,009 545 53 28. Electrical plug-in jumper for sliding roof motor to a 009 545 53 28.
32
Plug Housing Mercedes-Benz
Mercedes-Benz Description: Inboard cable plug connection, 12-pole. Main cable harness plug connection. (plug housing),14-pole. Fourteenfold. Cockpit cable harness. From idle switch plug connection to idle switch. Blinker switch,14-pole. Inboard cable harness plug-connection. Tail lamp cable harness,14-pole.
38
Contact Pin Mercedes-Benz
Mercedes-Benz Description: 4.0 MM. 4.0 MM2 RK4Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 4.0Release tool: W220 589 01 99 52. TO 009 545 53 28/56 28. 4.0 MM2 RK4Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: R ...
$2.40
$2.40
44
47
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 4,0 MM. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
$3.40
$3.40
50
$4.90
53
Grommet Mercedes-Benz
Mercedes-Benz Description: Fuel pump branch-off to luggage compartment floor. Flexible shaft thru unit partition panel. Rear speed sensor branch-off. Cable harness for illuminated ashtray in rear door. Rear door interior part. Pipe line mounting.
62
Fastening Clamp Mercedes-Benz
Mercedes-Benz Description: Cable harness to side member. Electric cables to main floor. Tail lamp cable harness to tunnel. Cable harness to plate.
65
Grommet Mercedes-Benz
Mercedes-Benz Description: Electric cable thru rear panel door and rear panel. Vacuum line thru rear panel/tail,left.
68
Clamp Mercedes-Benz
Mercedes-Benz Description: Main cable harness branch-off towards washer nozzle heating to engine hood. 18 x 13 mm. Electric cable to rear lid left hinge. 18 x 13 mm. Tail lamp cable harness to rear lid. 18 x 13 mm. Branch-off to luggage compartment to hinge. 18 x 13 mm. Automatic transmission cable harness. 18 x 13 mm.
68
Clip Mercedes-Benz
Mercedes-Benz Description: Electric cable to rear foglamp. 13x14 mm. For main cable harness to reverse drive light at gutter. 13x14 mm.
71
Clamp Mercedes-Benz
Mercedes-Benz Description: Rear door contact branch-off to central pillar. 27.8 x 50.0 mm. Electric cable to side member. 27.8 x 50.0 mm. Window regulator cable harness to side member. 27.8 x 50.0 mm. Electric cable to wheel arch. 27.8 x 50.0 mm. Electric cable to tailgate. 27.8 x 50.0 mm. Plug-socket cable to frame. 27.8 x 50.0 mm. 22,75mm. 27.8 x 50.0 mm.
74
Screw Mercedes-Benz
Mercedes-Benz Description: Ground cable to wheelhouse. Headlamp ground cable to right wheel arch panel. Headlamp ground to radiator baffle plate. Ground connection to tail lamp cable harness. License plate lamp to rear bumpen.
77
Spring Lock Washer Mercedes-Benz
Mercedes-Benz Description: Cables to cable connector. At front center stiffening. Blinker & tempomat switches to steering column jacket tube. Cable to resistor. Main cable harness to radiator baffle, right. Starting cable to cable connector.
$1.40
$1.40
