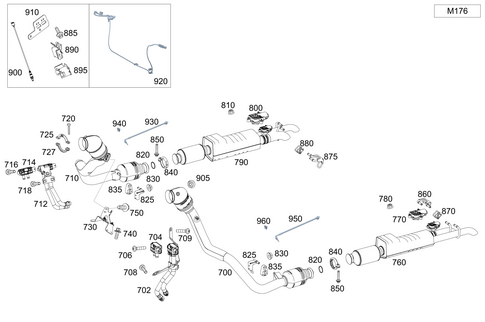

Exhaust System for 2023 Mercedes-Benz G550
No.
Part # / Description / Price
Price
200
Suspension, Exhaust Gas Line
Mercedes-Benz
Mercedes-Benz Description: Left rear exhaust system to longitudinal member. Exhaust system to holder. Right. To rear axle. To exhaust line at left. Exhaust gas line.
$29.50
$29.50
480
Actuator Component Mercedes-Benz
Mercedes-Benz Description: Exhaust gas flap rr lh. To exhaust line at left.
$360.00
$360.00
510
Actuator Component Mercedes-Benz
Mercedes-Benz Description: Right rear exhaust gas flap. Exhaust gas flap rr rh. Exhaust system, rear. To exhaust line at right. Exhaust line rear rh.
$340.00
$340.00
530
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: Left and right. Catalytic converter to front exhaust pipe. Catalytic converter to particulate filter. 3.0L. Right exhaust system to left exhaust system. From exhaust manifold to catalytic converter. Catalyst to front exhaust pipe.
$13.50
$13.50
535
$72.00
540
Nut Mercedes-Benz
Mercedes-Benz Description: Rear exhaust line to front exhaust line. Left and right. Exhaust pipe, rear, to exhaust pipe, front. Exhaust system and holder to suspension ring. Holder on left frame. Holder to left body mount. Left holder to frame.
$35.00
$35.00
545
Suspension Ring Mercedes-Benz
Mercedes-Benz Description: Center muffler. Left rear muffler. Left and right front. Central muffler. Damper system to bracket.
$24.50
$24.50
550
Pipe Clamp, Exhaust Sys Mercedes-Benz
Mercedes-Benz Description: Left and right. Catalytic converter to front exhaust pipe. Between catalytic converter and rear muffler. Catalytic converter to particulate filter. 3.0L. Right exhaust system to left exhaust system. Between catalytic converter and particulate filter. Catalyst to front exhaust pipe.
$18.50
$18.50
625
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Tube to bottom frame. Sliding angle to sliding roof plate. At lifting bow. At transport bridge. Locking clamp to rear end central part. Handle to rear lid.
$5.50
$5.50
640
$390.00
640
Lambda Sensor Mercedes-Benz
Mercedes-Benz Description: Right, downstream of catalytic converter. Left,downstream catalytic converter. Diagnosis sensor, left, after catalytic converter.
$368.00
$368.00
640
Lambda Sensor Mercedes-Benz
Mercedes-Benz Description: Upstream of right catalytic converter. Left,upstream catalytic converter.
640
Lambda Sensor Mercedes-Benz
Mercedes-Benz Description: Right control sensor upstream of catalytic converter. Right control probe in front of catalyst. Left control sensor upstream of catalytic converter.
$187.00
$187.00
640
Lambda Sensor Mercedes-Benz
Mercedes-Benz Description: Left control probe in front of catalyst. Upstream of left catalytic converter. In front of catalysr,left. Right control sensor upstream of catalytic converter. Right control probe in front of catalyst.
$218.00
$218.00
640
Lambda Sensor Mercedes-Benz
Mercedes-Benz Description: Right diagnosis probe behind catalyst. Left, downstream of catalytic converter. Right, downstream of catalytic converter.
$169.00
$169.00
652
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Differential pressure sensor. M6X25
Diameter: 6mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Roller blind. Left sensor mount. Pressure sensor to holder. Screwith bolt, armrest/stowage compartment, rear passenger compartment. Mount, sensor to holder. Screw, exhaust pressure sensor.
Diameter: 6mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Roller blind. Left sensor mount. Pressure sensor to holder. Screwith bolt, armrest/stowage compartment, rear passenger compartment. Mount, sensor to holder. Screw, exhaust pressure sensor.
$1.50
$1.50
661
Pressure Sensor Mercedes-Benz
Mercedes-Benz Description: Left sensor. Front left. Right. Differential pressure sensor, exhaust treatment.
708
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Rear lid to hinge lever. Drive to rear pillar. Pipe line to shock absorber leg reinforcement. Strut to front cross member. Bracket to car floor. Cooling pipe to front cross member. Engine hood upper catch to engine hood. Partition panel. Strut to stiffening,front central.
709
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Front engine mount on frame-type integral support. M10X20
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Engine mount, front, to subframe. Mount, right holder. Left exhaust gas line mount. Mount for engine mount, left. Right exhaust gas line mount. Bracket to frame type integral support.
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Engine mount, front, to subframe. Mount, right holder. Left exhaust gas line mount. Mount for engine mount, left. Right exhaust gas line mount. Bracket to frame type integral support.
$12.00
$12.00
720
Hexalobular Head Screw Mercedes-Benz
Mercedes-Benz Description: M8 X 55
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1,25mm. Clamp mount to exhaust system. Clamp mounting. Left and right. Front muffler to manifold. Front exhaust pipe to exhaust manifold m8x55. Catalyst to exhaust manifold. Clamp to pipe elbow.
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1,25mm. Clamp mount to exhaust system. Clamp mounting. Left and right. Front muffler to manifold. Front exhaust pipe to exhaust manifold m8x55. Catalyst to exhaust manifold. Clamp to pipe elbow.
$13.00
$13.00
725
Profile Clamp, Exhaust Sys Mercedes-Benz
Mercedes-Benz Description: Exhaust system to exhaust gas turbocharger. Exhaust pipe to turbocharger (upper part). Left and right. Top.
$82.00
$82.00
727
Profile Clamp, Exhaust Sys Mercedes-Benz
Mercedes-Benz Description: Exhaust system to exhaust gas turbocharger. Exhaust pipe to turbocharger (lower part). Exhaust system at left and right to turbocharger. Bottom.
$82.00
$82.00
730
Holder Mercedes-Benz
Mercedes-Benz Description: Left and right exhaust system to crankcase. To catalytic converter. Exhaust pipe to engine support.
$122.00
$122.00
740
$4.90
760
$695.00
790
$835.00
890
Holder Mercedes-Benz
Mercedes-Benz Description: Temperature sensor line mount
Material thickness: 0,4mm. LINE TO UNDERFLOOR
Material thickness: 0,4mm. Fastening, nox sensor and temperature sensor at left and right
material thickness: 0,4mm.
Material thickness: 0,4mm. LINE TO UNDERFLOOR
Material thickness: 0,4mm. Fastening, nox sensor and temperature sensor at left and right
material thickness: 0,4mm.
$3.40
$3.40
905
Screening Plate Mercedes-Benz
Mercedes-Benz Description: For mounting lambda sensor upstream of catalytic converter. Lambda sensor upstream of left and right catalytic converter. For fastening oxygen sensor upstream of catalytic converter.
$24.50
$24.50
940
Holder Mercedes-Benz
Mercedes-Benz Description: To transmission
Diameter: -
Inside diameter: -
Outside diameter: -
Material thickness: -.
Diameter: -
Inside diameter: -
Outside diameter: -
Material thickness: -.
