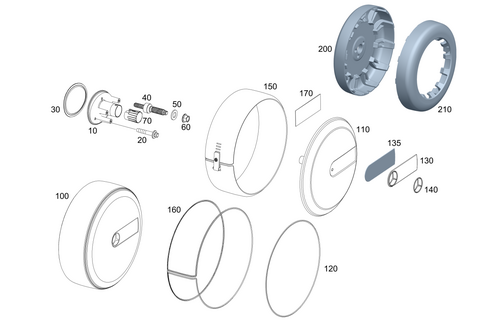

Spare Wheel Carrier for 2023 Mercedes-Benz G550
No.
Part # / Description / Price
Price
10
$179.00
20
Self-Tapping Screw
Mercedes-Benz
Mercedes-Benz Description: Carrier plate mount. Carrier plate to rear-end door. Container to body.
$2.70
$2.70
50
Washer Mercedes-Benz
Mercedes-Benz Description: INTERMEDIATE LEVER TO PIVOT BEARINGDiameter: 15mmStrength / hardness class: 140 HVInside diameter: 15mmOutside diameter: 28mmMaterial thickness: 2,5mm. Spare wheel to carrierDiameter: 15mmStrength / hardness class: 140 HVInside diameter: 15mmOutside diamet ...
$7.75
$7.75
60
$10.50
100
$900.00
100
$1,290.00
110
$1,200.00
150
$2,170.00
150
150
$2,170.00
170
$37.00
170
$25.00
400
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Hose to hose. M8X25
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Cable on valve. High-pressure expansion hose holder m8x25. Support mount. Left seat, inner. Side wall holder at assembly frame, left. To power steering pump.
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Cable on valve. High-pressure expansion hose holder m8x25. Support mount. Left seat, inner. Side wall holder at assembly frame, left. To power steering pump.
$1.90
$1.90
440
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Cover to hinges. M6X10
Diameter: 6mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Hinge to spare wheel carrier.
Diameter: 6mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Hinge to spare wheel carrier.
520
540
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Spare wheel carrier mount. M12X120
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 18mm.
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 18mm.
620
