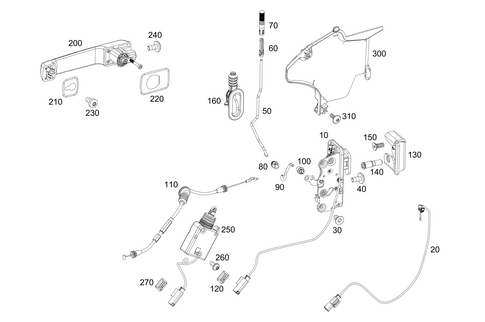

Locking System for 2023 Mercedes-Benz G550
No.
Part # / Description / Price
Price
10
Door Lock
Mercedes-Benz
Mercedes-Benz Notes: THE OLD PART MUST NO LONGER BE INSTALLED
Description: Rear door, left.
20
Limit Switch Mercedes-Benz
Mercedes-Benz Description: Locking system, left. Tailgate lock. Door lock, front door, left. To left door lock.
$53.00
$53.00
30
Countersunk Screw Mercedes-Benz
Mercedes-Benz Description: Rear spoiler mount. M5x12. Lock at door, left. Lock mount. Screw, door lock, front door, left. Screw, door lock, rear door, left. Screw, tailgate lock.
$1.20
$1.20
40
$1.40
50
Securing Rod Mercedes-Benz
Mercedes-Benz Description: Right upper. Door at right, top. Door lock, front door, right.
50
50
Securing Rod Mercedes-Benz
Mercedes-Benz Description: Right upper. Door at right, top. Door lock, front door, right.
$29.50
$29.50
50
Securing Rod Mercedes-Benz
Mercedes-Benz Description: Left upper. Door at left, top. Door lock, front door, left.
$29.50
$29.50
60
Knob, Door Lock Mercedes-Benz
Mercedes-Benz Description: Interior handle assembly to door left. Left bottom. Lower part, left. Front door, left. Silver, lower.
$4.00
$4.00
70
$14.50
80
Clamp Mercedes-Benz
Mercedes-Benz Description: Vacuum element with bracket to inside central part flap. Circulating air flap. Left operating rod. Rod to covering. Actuator rod. Door lock, front door, left. Pull and lock rods to door lock.
$2.50
$2.50
90
Securing Rod Mercedes-Benz
Mercedes-Benz Description: Left lower. Central locking mechanism, left. Door lock, front door, left.
$14.50
$14.50
130
Lock Wedge Mercedes-Benz
Mercedes-Benz Description: Rear-end door. Door lock, rear door, left. To body. To left B-pillar.
130
$20.00
140
Striker Pin Mercedes-Benz
Mercedes-Benz Description: Door locking system. Door lock, rear door, left. Lock wedge to body. Lock wedge to left B-pillar.
$21.00
$21.00
150
Countersunk Screw Mercedes-Benz
Mercedes-Benz Description: Mount, lock wedge. M8x20. Lock wedge to left B-pillar. Left door lock. Lock wedge to body.
$6.00
$6.00
160
Grommet, Open, Smooth Mercedes-Benz
Mercedes-Benz Description: Safety bar at door, left. Securing rod to left door. Door lock, front door, left. Rear door, left, inside.
200
200
Door Handle Mercedes-Benz
Mercedes-Benz Description: 1-leaf rear-end door. Right. Door handle, front door, left. Door handle, rear door, left. Handle, rear-end door/liftgate.
200
Door Handle Mercedes-Benz
Mercedes-Benz Description: Door handle, front door, right. Door handle, rear door, right.
210
Spacer Plate Mercedes-Benz
Mercedes-Benz Description: Compensating element, door handle, front door, left. Compensating element, door handle, rear door, left.
$6.50
$6.50
220
Spacer Plate Mercedes-Benz
Mercedes-Benz Description: Compensating element, door handle, front door, left. Compensating element, door handle, rear door, left.
$7.25
$7.25
250
Actuator Motor Mercedes-Benz
Mercedes-Benz Description: Left and right front door. Left and right rear door.
$150.00
$150.00
260
Hexalobular Bolt Mercedes-Benz
Mercedes-Benz Description: Mounting parts. 5x12 mm. Bracket mounting. 5x12 mm. Left. 5x12 mm.
$3.50
$3.50
260
Countersunk Screw Mercedes-Benz
Mercedes-Benz Description: Actuator motor mount. 5X16. Control unit mount. 5X16. At bracket. 5x16. Center console mount. 5X16. Bracket to glove compartment. 5x16. Cover. 5x16. Fastening bracket left. 5x16.
$3.40
$3.40
300
Cover, Door Lock Mercedes-Benz
Mercedes-Benz Description: Right door lock. Rear door, right. Theft protection at right door.
$130.00
$130.00
300
Cover, Door Lock Mercedes-Benz
Mercedes-Benz Description: Left door lock. Rear door, left. Theft protection at left door.
$122.00
$122.00
